Climate change

Proactive performance of businesses in building a low-carbon and climate-resilient society.

For information on Climate Risks and Opportunities, access the TCFD topic

KODS 2030


Reduce Scope 1 and 2 GHG emissions by 25% per ton of pulp, paper and packaging by 2025, and 49% per ton of pulp, paper and packaging by 2035.



Percentage reduction in emissions

2021 2022 2023 (Preview) 2025 Goal 2035 Goal
10.3% 14.3% 22.7% 25% 49%



In 2023, natural gas consumption was decreased at the Franco da Rocha and Paulínia units, fossil fuels were replaced by biofuels and biomass gasification was fully implemented at the Puma unit. Bio-oil was also used in two lime kilns at the Monte Alegre unit.

It is also worth mentioning that these initiatives are aligned with the targets approved by the SBTi (Science Based Targets initiative) in May 2021. The targets establish a 25% reduction in scope 1 and 2 emissions per ton of pulp, paper and packaging by 2025 and a 49% reduction in emissions by 2035, considering 2019 as the base year.

During the year, three bio-oil substitution tests were carried out in the lime kilns, two in kiln N2 and one in kiln N1, all of which achieved 100% substitution.


KODS 2030


Net capture of 45 million tons of CO₂eq from the atmosphere between 2020 and 2030.



Amount of CO₂eq tons captured from the atmosphere (In millions of tons of CO₂eq)

2021 2022 2023* (Preview) 2030 Goal
9.46 14.68 19.90 45.00



*Value refers to 2022. The 2023 GHG and Forest inventories will be calculated in 2024.

Thanks to the 15% increase in Klabin's forestry base in 2022, there was a significant increase in both the volume of carbon captured by planted forests and the volume stored in conserved native forests.

Undertaking goals linked to the topic by executives.


  2022 2021
Managers 23.0% 2.7%
Directors 100.0% 50.0%
Total executives 200 30


Carbon Balance

Klabin has a positive carbon balance, which means the company captures more carbon dioxide from the amosphere than it emits in its operations.

  Unit 2022 2021 2020
Balance (Capture - Emission) kt CO2eq 5,230.49 4,958.71 4,506.68
Capture (Planted Forest + Native Stock) kt CO2eq 13,123.08 12,183.85 11,122.10
Planted forest (capture of CO2 from the growth of planted trees in 2022) kt CO2eq 9,798.71 9,323.13 8,447.07
Native Stock (CO2 stocked by the growth of native forests in 2022) kt CO2eq 3,324.37 2,860.72 2,675.03
Emissions (Scope 1+2+3) kt CO2eq -7,892.59 -7,225.14 -6,615.42
Scope 1   -7,044.32 -6,669.59 -6,199.76
Combustion (fixed and mobile, fugitive emissions, rural and industrial processes) kt CO2eq 773.00 -783.79 -703.83
Biogenic (biomass combustion) kt CO2eq -6,271.32 -5,885.80 -5,495.93
Scope 2   -255.65 -270.93 -202.19
Biogenic (biofuel consumption) kt CO2eq -260.67 -251.03 -124.42
Energy purchase kt CO2eq 5.03 -19.90 -77.77
Scope 3   -592.62 -284.62 -213.47
Transportation and Distribution (waste generated, travel, employee commute) kt CO2eq -576.80 -266.93 -192.06
Biogenic (biofuel consumption) kt CO2eq -15.82 -17.69 -21.41

Methodology: GHG Protocol Brasil, verified by third part

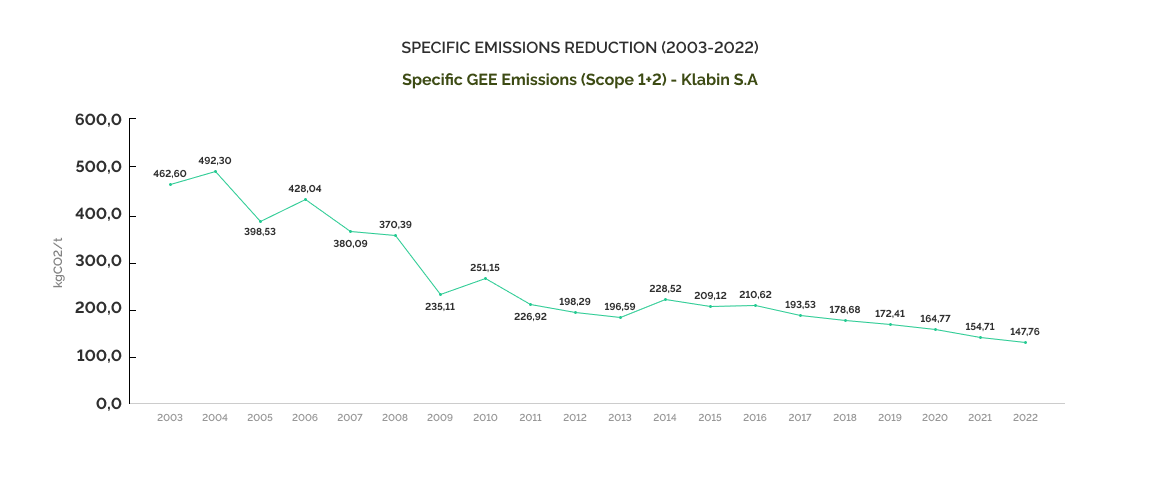

Reduction of specific emissions (2003-2021)



GRI-305-1 SASB-RR-PP-110a.1 SASB-RT-PP-110a.1

Gross and biogenic direct GHG emissions (Scope 1) – ton CO2e

  Unit 2022 2021 2020 2019 2018
    Gross emission Biogenic emission Goal for the year Gross emission Biogenic emission Goal for the year Gross emission Biogenic emission Gross emission Biogenic emission Gross emission Biogenic emission
Direct GHG emissions (through operational and financial control) t CO2e 772,999.62 6,271,321.29 731,739.90 783,791.71 5,885,796.97 757,580.40 703,830.51 5,495,936.23 713,885.93 5,231,190.87 668,952.44 5,011,972.26

The increase in gross emissions can be explained by the 11% increase in the consumption of non-renewable fuels due to the accounting of emissions from the five units acquired from International Paper in 2020, which use natural gas and fuel oil in their boilers, in addition to the startup of MP27 at the Puma unit. It is important to point out that despite this, there was also an 8% increase in the consumption of renewable fuels, especially biomass, tall oil, and tar. We will begin the biomass gasification operation at Puma II in 2022. In the target for the year, the increase in absolute emissions due to expanded operations is already considered.

SASB-RT-PP-110a.1

Percentage of emissions covered by regulations

2022 2021 2020
82.2% 82.2% 81.3%

The São Paulo units in Angatuba, Piracicaba, Jundiaí, Franco da Rocha, Paulínia and all of the state of Paraná are covered by the state environmental agency’s regulatory system.

GRI-305-2 GRI-305-3 SASB-RT-PP-110a.1

Indirect (Scope 2) GHG emissions resulting from the purchase of energy (ton CO2e)

  Unit 2022 2021 2020 2019 2018
    Value Goal for the year Value Goal for the year Value Value Value
Indirect emissions from energy acquisition t CO2e 5,025.43 19,603.60 19,903.56 26,138.20  30,141.95  95,674.19  87,791.49
Location method t CO2e 136,962.73   158,189.50   77,768.00 95,674.19 87,791.49
Indirect emissions from the acquisition of energy through the Market-based method t CO2e  5,025.43   19,903.56 26,138.20 30,141.95 95,674.19 87,791.49
% renewable energy purchase % 100   97   62 61 61

(Base year 2004, the first year in which we quantified the CO2 emissions of Klabin S.A.) In the target for the year, the increase in absolute emissions due to expanded operations is already considered.

Starting in 2020, it was decided to use the market-based method to measure indirect emissions (scope 2), as opposed to previous years that prioritized the location-based method. In 2021, 482,059 IRECS were issued for the surplus power generated by the Puma unit, which caused the percentage of renewable energy purchase to increase considerably; without the IRECS, our market-based Scope 2 emissions would be 70,898 tCO2eq.

GRI-305-3

Other indirect (Scope 3) GHG emissions (ton CO2e)

  Unit 2022 2021 2020 2019 2018
    Gross emission Biogenic emission Gross emission Biogenic emission Gross emission Biogenic emission Gross emission Biogenic emission Gross emission Biogenic emission
Other indirect emissions ton CO2e 3,838,134.95  17,205.11 493,933.07 17,685.31 456,879.85 21,788.53 447,352.81 21,830.46 170,465.99 15,760.52
Goods and services purchased ton CO2e 710,355.20   113,102.94   85,282.25
Energy-related activities not included in scopes 1 and 2 ton CO2e 88,607.43    2,488.18 287.41 2,296.17 269.35
Transportation and distribution (upstream) ton CO2e 74,194.67 6,926.64 374,407.86 17,027.49 367,581.24 21,417.89 444,112.74 20,551.09 62,558.65
Waste generated in the operation ton CO2e  587.47   83.67  595.98   412.30   356.18   413.18
Business travel ton CO2e  1,897.06    408.13   413.97   938.90   729.74
Employee commute (home-work) ton CO2e 15,694.43    2,929.98 370.41 893.92 101.29 1,944.99 1,279.37 2,363.61
Transportation and distribution (downstream)* ton CO2e   383,603.83  10,194.81              104,378.81
Processing of sold products ton CO2e  2,276,239.53
End-of-life handling of products sold ton CO2e 286,955.33

In 2022, Klabin carried out a much broader study to identify and account for the relevant categories of Scope 3, seeking to define the most relevant ones for the company, based on the evolution of understandings and definitions regarding this scope.
The categories of purchased goods and services (category 1) and activities related to fuels and energy not included in scope 1 and 2 (category 3) were expanded considering at least 90% of relevant emissions from these categories. This study took into account the carbon footprint of studies already carried out by Klabin to identify more carbon-intensive inputs and raw materials.
Emissions from the transport and distribution category were segregated between category 4 (upstream) and category 9 (downstream), as was done until 2019.
In addition, Klabin has included two new categories in its scope 3, the sold products processing category (category 10) and the end-of-life treatment category (category 12). Category 10 emissions consider emissions during the processing of intermediate products sold by Klabin to customers, such as hardwood and hardwood pulp, and kraftliner and paperboard. Category 12 emissions, on the other hand, consider emissions from end-of-life treatment of final products sold by Klabin, such as packaging and industrial bags.
All emission factors considered in this scope 3 expansion study considered secondary sources (EcoInvent). As of 2023, Klabin will focus on the value chain engagement strategy and has started to approach, train and engage its suppliers and relevant customers.

*Transport and distribution of products sold are recorded in “Transport and distribution (upstream)”, according to the GHG Protocol methodology, as they are paid by Klabin.

GRI-305-1 GRI-305-2 GRI-305-3 GRI-305-5 SASB-RR-PP-110a.1 SASB-RT-PP-110a.1

The methodology used to calculate GHG emissions, including emission factors and global warming potential (GWP) adopted was that of the Brazilian GHG Protocol Program.

The information consolidation approach used was operational control, and CO2, N2O, CH4 and HCFCs gases were included in the calculation of direct (Scope 1) and indirect (Scope 2 and 3) emissions. The other greenhouse gases that are mandatory to report are not generated in our operations.

The base year chosen was 2004, the first in which we quantified the Company’s CO2 emissions. For eission targets, the increase in absolute emissions due to expanded operations is already considered.

SASB-RR-PP-110a.2

GHG emission reduction targets

  Unit 2022 2021 2020 Reduction target (2025)
Absolute emission reduction target (scope 1) % -3.0% 13.0 -6.0 -13.6
Absolute emission reduction target (scope 3) %
Specific emission reduction target (scope 1 + scope 2) % -12.4% -8.3 -4.1 -25.0


GRI-305-5 GRI-103-2 SASB-RR-PP-110a.1 SASB-RT-PP-110a.1

Comments on overall performance

In 2021, we had a 17% increase in production, causing our energy intensity to decrease by 8%, despite a 9% increase in absolute Scope 1+2 emissions. The reduction was mainly due to the 44% gain in the intensity of Scope 2 emissions due to the issuance of IRECS from the surplus power generated by the Puma unit.

Reductions in combined activities

  Unit 2022 2021 2020
Estimated saving in the year ton CO2e 50,590.50  26,675.00 131,988.97
Annual investment required BRL 141,486,000.00 57,800,000.00 54,978,847.91
Total expected annual cost savings BRL 2,023,620.00 2,322,000.00 22,996,557.58
Payback period no. of years  6.3 years 6.3 years 6 years

Emissions from products classified as low carbon or that allow third parties to avoid GHG emissions

  2022 2021 2020
Type Aggregation level % of total product revenue Total emissions avoided in 2021 (ton CO2e) Aggregation level % of total product revenue Total emissions avoided in 2021 (ton CO2e) Aggregation level % of total product revenue Total emissions avoided in 2020 (ton CO2e)
Low carbon products Across the company 100% 9,798,708.00  Across the company 100% 9,323,134.00
Emissions avoided for third parties Product 1% 203,651.31  Product 1% 228,963.46

Organization's internal carbon price

Scope of emissions Scope 1
Type of internal carbon price - Shadow price;
- Implicit price
Application Selected business units
Price (per tCO2e) BRL 40.00/ton
Pricing approach External resources

GRI-305-7 GRI-103-2

Performance evolution*

Material 2022 2021 2020
NOx 5% -4% 11.70%
SOx -22% -66% -17.70%
PM -59% -16% 4.63%

*Compared to the previous year

“We applied federal legal requirements to all sources of emissions, except for units where specific state legislation applies and/or emission limits are stipulated in environmental licenses. The selection of emission limits complies with the legislation of the state where the unit is located. In 2021, the following relevant points stand out:
1 – Reduction in NOx emissions (-4%) in the Paper and Pulp segment. Non-significant variation – there were no significant process changes.
2 – Reduction in SOx emissions (-66%) in the Paper and Pulp segment. Reduction can be tied to the measurement period and monitoring company that was changed between 2020 and 2021. This value will increase in 2022 with the full load of the new boilers and lime kilns at the Puma unit in Paraná.
3 – Reduction in PM emissions (-16%) in the Paper and Pulp segment. In 2021, we started the operation of the electrostatic precipitator to treat the emissions from Force Boiler 8 at the Otacílio Costa-SC unit.

This value will increase in 2022 with the full load of the new boilers and lime kilns at the Puma unit in Paraná.”

GRI-305-7 SASB-RR-PP-120a.1 SASB-RT-CP-120a.1

Air emissions of NOx, SOx and other significant emissions*

  Unit 2022 2021 2020 2019 2018
NOx t 4,930.19 4,696.49 4,885.27 4,654.33 4,374.83
NOx (excluding N2O) t
SOx t 614.96 784.26 2,313.91 4,036.17 2,813.06
Volatile Organic Compounds (VOC) t 7.51 01.02 50.45 31.08 18.05
Particulate Matter (PM) t 1,901.05 4,609.45 5,485.70 5,178.12 5,243.06

Emission factors, standards, methodologies, and assumptions

The source of the emission factors used is the sum of the results of the air emissions monitoring campaigns for Klabin emission sources, performed via isokinetic monitoring. This information was obtained in sampling reports produced by laboratories outsourced and accredited to perform this service. For these gases, direct measurements are performed in the chimneys, obtaining gas concentrations and flow rates. The emission rate is thus calculated and extrapolated for the entire year to obtain the absolute value.

The samplings performed follow the standards of the Brazilian Association of Technical Standards (ABNT) and use the isokinetic monitoring methodology and other CETESB references.

Persistent organic pollutants (POP) and Hazardous air pollutants (HAP) have not been determined as legal constraints to the business.

The changes in relation to the year 2020 are attributed to specific variations of the process at the time of isokinetic monitoring.

ISO 14001 Certification

Table with the list of employees by certified units can be checked at the end of the chapter in the link: ISO 14001 Certification

According to this question check TCFD.

Climate change management is part of Klabin's strategy and is integrated into the risks and opportunities agenda for the businesses of the Company and its stakeholders. We follow the guidelines for climate change management – mitigation and adaptation. Among the main drivers is the Business Ambition for 1.5º C, a global campaign of the United Nations (UN), and the commitment to reduce emissions considering science and neutrality by 2050.

The Company has a history of investments and the adoption of low-carbon technologies that has resulted in an over 68% drop in recent years (2003-2022) in CO2 equivalent emissions per ton of product generated. It is worth emphasizing that the Klabin Sustainable Development Goals (KSDGs) include the commitment to develop science-based carbon reduction targets. This means that Klabin adopts challenging targets that have been approved by the Science Based Target initiative (SBTi), in line with the global challenge of limiting the average temperature increase to 1.5°C.

In 2021, the company launched the Impacto NetZero campaign, with the Global Compact Network Brazil. Its intention is to engage the private sector and civil society in the urgency to develop concrete actions focused on combating climate change, reducing GHG emissions as much as possible and neutralizing the balance, completely zeroing its balance by 2050.

With respect to climate risks/opportunities or adaptation, the Company follows the recommendations of the Task Force on Climate-Related Financial Disclosure. In 2020, Klabin became a TCFD Supporter, implementing and improving actions in the pillars of governance, strategy, risk management and targets/metrics.

*Since 2019, Klabin began to consider Scope 2 emissions using the methodology based on the choice of purchase.

GRI-103-2 SASB-RR-PP-110a.2 SASB-RT-CP-110a.2

Mechanisms and actions adopted

Klabin's MACC curve allows the medium and long term evaluation of other technologies to reduce carbon emissions. It enables the prioritization of climate mitigation and resilience measures organized by a single, understandable metric: the economic cost of emissions reduction. It is possible to evaluate/compare: (i) the cost of regulation; and (ii) the cost of investment in low carbon technology. From this analysis, it is understood that, for Klabin, it is more economically attractive to invest in low-carbon technologies than to pay a carbon tax or buy a permit to emit.

In 2019, Klabin adopted internal carbon pricing from the establishment of a shadow price in order to prepare for and reduce the possible impacts of carbon regulation in Brazil. In addition to analyzing the financial impact of a possible cap-and-trade or carbon taxation system in Brazil, the company is evaluating a number of low-carbon technologies in the medium and long term.

In 2020, Klabin became a TCFD Supporter, proving its engagement in actions that denote transparency, responsibility with sustainability, and business orientation related to the planet's climate changes. The Task Force on Climate-Related Financial Disclosures (TCFD) is a set of recommendations developed by the Financial Stability Board (FSB) for companies to incorporate climate-related risks and opportunities into their financial strategies and disclosures. For Klabin, supporting the TCFD and improving the adoption of its recommendations will help in transparency and communication with its stakeholders, especially investors. The Company adopts measures to identify and mitigate climate risks, as well as to exploit opportunities. The Forestry research, development, and innovation area, for example, invests in biotechnology to develop and test pine and eucalyptus clones that are more resistant to climate change. On the opportunity side, the valorization of renewable energy is important to generate returns on the company's investments, since the Puma Unit provides the Brazilian electrical system with an important surplus of renewable energy production. The Company also monetizes this clean energy by generating and trading renewable energy certificates – IRECs.

Furthermore, Klabin had its targets for the reduction of GHG emissions approved by the Science Based Targets initiative (SBTi) in 2021. This initiative establishes methods and tools for companies to institute science-based emission reduction targets. The Company's commitment, released today by the SBTi, establishes a 25% reduction of GHG emissions (scope 1 – own emissions and scope 2 – emissions in purchased energy) per ton of pulp, paper and packaging by 2025, and 49% by 2035, with 2019 as the base year.

The SBTi initiative is a partnership between the Carbon Disclosure Project (CDP), the United Nations Global Compact, the World Resources Institute (WRI) and WWF, and seeks to drive climate action in the private sector through science. The commitment to the design of emission reduction targets contributed to Klabin being the only Brazilian company to be invited to join the COP-26 Business Leaders, a group responsible for disseminating and engaging the private sector on the topic of climate change. Back in 2019, the company committed to the Business Ambition for 1.5° C - Our only future campaign, led by the UN's agencies and SBTi, and more recently joined the Race to Zero movement.

It is also worth mentioning that, in 2022, Klabin won CDP's Triple A rating for the second year in a row, attesting to its leadership in issues related to water security, forests and climate change.

GRI-103-2 SASB-RR-PP-110a.1 SASB-RT-CP-110a.1

Risks related to the targets

The risk of inconsistent results on the climate agenda can impact the Company's image and business, even causing a loss in investments. This is one of the items integrated in the risk management assessment and is constantly updated in meetings with members of the Sustainability Committee, the Risks and Internal Controls Committee, and the Board of Directors, which discuss changes and adjustments to this topic. Another element that is part of this management is reputation, so Klabin constantly monitors its image in the various means of communication. The company has an excellent perception of its socio-environmental and climate image in the market, a fact directly related to the maintenance of certifications such as the FSC and ISO 14.001. Also influencing this perception is the Company's inclusion in CDP's Triple A List for the second consecutive year, making it the first Latin American company to join this select group. In addition, the company has undertaken relevant public climate commitments, such as meeting the TCFD guidelines, commitment to the Business Ambition for 1.5C global campaign and the Global Compact; in addition to the approved climate targets: (i) meeting the targets agreed with the Science-Based Targets Initiative; (ii) 100% purchase of certified energy from renewable sources; (iii) reducing fossil fuel use to have an energy matrix that is 92% renewable. In addition, the company has participated in the Corporate Sustainability Index of the Brazilian Stock Exchange (B3) since 2013.

SASB-RR-FM-450a.1

Climate-related risks and opportunities for forest management and wood production

"Climate risks and opportunities are part of the Company’s management and decision-making processes, especially those related to forest management, due to their relevance to the business.

Klabin’s forest research area – Department of efficiency and ecophysiology – monitors possible future climate scenarios, developing data modeling related to climate parameters and assessing the impacts on planted forests. It then recommends necessary measures in case of adverse effects. Potential risks mapped include, for example, the increase in temperature in the Paraná region, where Klabin’s main forest areas are located.

This increase in temperature can have negative impacts, such as accelerating the growth rate of forest pests and the need for greater irrigation of the plantations, among others. To mitigate these potential risks, the Company invests in a series of actions in the areas of plant health, biotechnology, and genetic improvement, with practical results, such as the genetic improvement of pine trees to adapt to these circumstances and considering the projected increase in temperature for the Southern region of Brazil.

Learn more about the climate risks identified in the TCFD topic."



Materiality

Material issue  Climate change
Business case  Climate change management is part of Klabin's strategy and is integrated into the agenda of risks and opportunities for the Company's business and its stakeholders. Among the main guiding principles are our Sustainability Policy and the Guidelines for the Management of Climate Change - Mitigation and Adaptation. In addition, we are committed to the Business Ambition for 1.5° C, a UN global campaign, which aims to reduce emissions considering science and neutralization of emissions by 2050. The climate risks and opportunities are inserted in the company's management and decision-making processes, especially those related to forest management, due to their relevance to the business. The forestry research area - Efficiency and Ecophysiology Department - monitors possible future climate scenarios, developing data modeling related to climate parameters and assessing the impact on planted forests. Among the potential risks mapped is, for example, the rise in temperature in the region where Klabin's main forestry area is located.
Business impact  Risks
Business strategies  The Company has a history of investments and adoption of low carbon technologies which has allowed that in recent years (2003 - 2020) there has been a 64%* drop in emissions of CO2 equivalent per ton of product generated. It is reinforced that among Klabin's Objectives for Sustainable Development (KODS) is the commitment to develop carbon reduction targets based on science. This means that Klabin's carbon reduction targets are challenging and have been approved by the Science Based Target initiative (SBTi), aligned with the global challenge of limiting the average temperature increase to 1.5°C. In the line of adaptation or climate risks/opportunities, the Company follows the recommendations of the Task Force on Climate-Related Financial Disclosure. In 2020, Klabin became a "TCFD Supporter", having implemented and improved actions in the pillars of governance, strategy, risk management and targets/metrics.
Long-term target  i. Reduce scope 1 and 2 GHG emissions by 25% per ton of pulp, paper and packaging by 2025, and 49% per ton of pulp, paper and packaging by 2035.  ii. Net capture of 45 million tons of CO₂eq from the atmosphere between 2020 and 2030.
Target year  2035
Executive compensation

GOALS - Undertaking goals linked to the topic by executives

Updated and verified on: 06/25/2022
